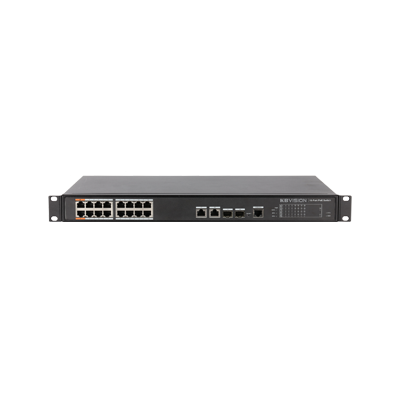

16-port 10/100Mbps PoE Switch KBVISION KX-CSW16-PF

Thương hiệu: KBVISION Mã sản phẩm: KX-CSW16-PF

4.980.000₫

Chi tiết
Đánh giá

16-port 10/100Mbps PoE Switch KBVISION KX-CSW16-PF

- Switch PoE 16 port (hỗ trợ 2 cổng Uplink 1G + 2 cổng quang)

- 16 x 10/100Mbps PoE Ports + 2 SFP ports 1000Mbps + 2 port Uplink 1000Mbps (sử dụng 2 port quang hoặc 2 Uplink, không sử dụng đồng thời cả 4 port)

- Đường truyền hiệu dụng cho cổng PoE: <=100 m cáp cat5 hay cat6 (10/100Mbps).

- Chế độ mở rộng đường truyền lên đế 250m cho cáp cat6 (10 Mbps)/ cổng SFP: 0~100km.

- Công suất PoE lên đến 15.4W cho mỗi cổng PoE.

- Tổng công suất PoE tối đa 190W cho tất cả các cổng PoE

- Hỗ trợ 2 cổng Hi-PoE 60W cho camera Speeddome (màu cam)

- Hỗ trợ chuẩn PoE: IEEE802.3af, IEEE802.3at, Hi-PoE

- Nguồn điện: AC100-240V 50/60Hz

- Chống sét: 4KV

- Hỗ trợ giao diện web để quản lý.

Đặc tính kỹ thuật

Model	KX-CSW16-PF
Performance
Layer	Layer 2
Managed	Yes
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	5.36 Mpps
Packet Buffer Memory	2.75 Mbit
MAC Table Size	4K
Communication Standard	IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z
Hardware Feature
Standard Power	Yes
PoE	Yes
Ethernet Port	16
Optical Port	2
Ethernet Port Rate	100 Mbps
Optical Port Rate	1 Gbps
Number of Business Card Slots	Port 1-16: 16 × RJ-45 10 M/100 M (PoE) Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink) Port 17-18: 2 × SFP 1000 M (uplink) (combo)
Debugging	Console × 1
Power Supply	100V–240V AC
Operating Temperature	–10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity	10% RH–90% RH
Power Consumption	Idling: 10W Full load: 190W
PoE
PoE Standard	IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget	Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 190W
PoE Pin Assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management	Power consumption management Power on and power off Power down for overload Green PoE Legacy support
Long Distance PoE Transmission	250 m long-distance power supply
Function
Spanning Tree Protocol	IEEE 802.1d (STP); 802.1w (RSTP)
VLAN	IEEE802.1q Standard VLAN
Flow Control	Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation	Static; LACP
Port Mirroring	One-to-one; multiple-to-one
Multicast	GMP snooping based on port
DHCP	DHCP client
Security	Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS	High and low priority WRR 802.1P DSCP Priority based on protocol
General
ESD	Air discharge: 8kV Contact discharge: 6kV
Thunder-proof	Common mode: 4kV Differential mode: 2kV
Dimensions	440 mm × 300 mm × 44 mm
