Còn hàng
VIỄN THÔNG TUẤN KIỆT
Shop bán những sản phẩm giá cực kì tốt và có tính cạnh tranh cao so với các shop khác, sản phẩm rất chi hài lòng
6-Port 10/100Mbps Unmanaged Desktop Switch DAHUA DH-PFS3006-4ET-60
Thương hiệu: DAHUA
Mã sản phẩm: DH-PFS3006-4ET-60
Còn hàng
999.000₫
- Chi tiết
- Đánh giá

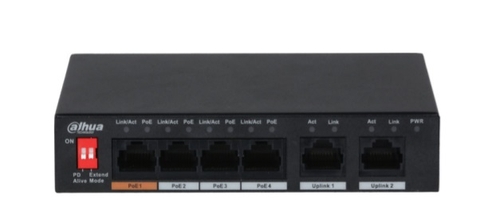

6-Port 10/100Mbps Unmanaged Desktop Switch DAHUA DH-PFS3006-4ET-60
- 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports is a type of layer two commercial switch. It provides 4 10/100 Mbps Ethernet ports and 2 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost
- Layer two commercial switch.
- Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards.
- MDI/MDIX self-adaptation.
- RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards.
- Port 1 supports Hi-PoE 60W power supply.
- 250 m PoE power supply.
- Wall mounting and mechanical anti-theft.
- 53V DC power supply.
- Supports PoE watchdog.
Đặc tính kỹ thuật
| Model | DH-PFS3006-4ET-60 |
| Hardware | |
| Ethernet Port | 4 |
| Optical Port | 0 |
| Ethernet Port Rate | 100 Mbps |
| Number of Business Card Slots | Port 1–4: 4 × RJ-45 10/100 M (PoE) Port 5–6: 2 × RJ-45 10/100 M (uplink) |
| Power Supply | 53V DC |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 5%–95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Storage Humidity | 5%–95% |
| Power Consumption | Idling: 1.5W Full load: 60W |
| Performance | |
| Switching Capacity | 1.80 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Packet Buffer Size | 1 Mbit |
| MAC Table Size | 2K |
| Communication Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| PoE | |
| PoE Standard | IEEE802.3af/IEEE802.3at/Hi-PoE |
| PoE Power | 60W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Far Distance Mode | 250 m @10 Mbps |
| General | |
| ESD | Air discharge: 8kV Contact discharge: 6kV |
| Thunderproof | Common mode: 2kV Differential mode: 1kV |
| Net Weight | 0.3 kg (0.66 lb) |
| Gross Weight | 0.9 kg (1.98 lb) |
| Product Dimensions | 130 mm × 85 mm × 26 mm |
| Packaging Dimensions | 267 mm × 239 mm × 77 mm |
- Bảo hành: 24 tháng.
