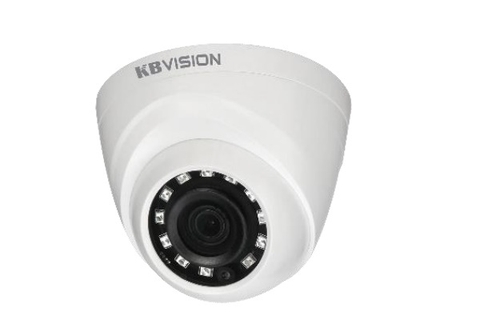

Camera Dome 4 in 1 hồng ngoại 8.0 Megapixel KBVISION KX-C8012C

Thương hiệu: KBVISION Mã sản phẩm: KX-C8012C

981.000₫ Giá niêm yết: ~~2.108.000₫~~ Tiết kiệm: 1.127.000₫ so với giá thị trường

Camera Dome 4 in 1 hồng ngoại 8.0 Megapixel KBVISION KX-C8012C

- Camera 4 in 1 (CVI, TVI, AHD, Analog).

- Cảm biến hình ảnh: 1/2.7 inch Sony Starvis 8.0MP (3840×2160).

- Độ phân giải: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps.

- Hỗ trợ cân bằng ánh sáng, bù sáng, chống ngược sáng, chống nhiễu 2D-DNR.

- Ống kính: 3.6mm (góc nhìn 87°).

- Tầm quan sát hồng ngoại: 20 mét, hỗ trợ Smart IR.

- Tiêu chuẩn bảo vệ: IP50.

- Nguồn điện: 12VDC ±30%.

- Vỏ nhựa.

Đặc tính kỹ thuật

Model	KX-C8012C
Camera
Image Sensor	1/2.7 inch CMOS
Effective Pixels	3840 (H) × 2160 (V), 4K
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 20m
IR On/Off Control	Auto/ Manual
IR LED Number	12
Pan / Tilt / Rotation	Pan: 0°~360°, Tilt: 0°~78°, Rotation: 0°~360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8mm; 3.6mm
Max Aperture	F2.0
Iris Type	Fixed iris
Field of View	2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical) 3.6mm: 104° x 87° x 47° (diagonal x horizontal x vertical)
Iris Type	Fixed iris
Video
Resolution	4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night	Auto switch by ICR
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	2DNR
Smart IR	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
General
Power Supply	12VDC ±30%
Power Consumption	Max 3.56W (12V DC, IR on)
Casing	Plastic
Protection Grade	IP50
Operating Temperature	-40°C to +55°C
Dimensions	φ85.4 mm × 70.2 mm
Weight	0.12kg
