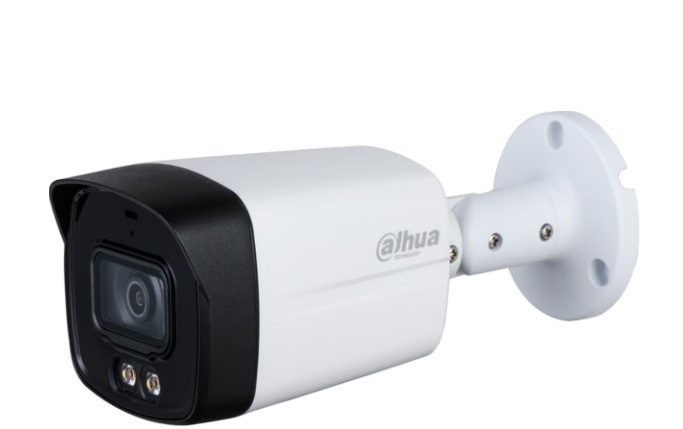

Camera HDCVI 2.0 Megapixel DAHUA HAC-HFW1239TLMP-A-LED

Thương hiệu: DAHUA Mã sản phẩm: HAC-HFW1239TLMP-A-LED

950.000₫

Chi tiết
Đánh giá

Camera HDCVI 2.0 Megapixel DAHUA HAC-HFW1239TLMP-A-LED

- Cảm biến hình ảnh: 1/2.8inch CMOS.

- Độ phân giải Camera: 2.0 Megapixel.

- Tích hợp đèn LED trợ sáng với khoảng cách 40m.

- Tích hợp Mic ghi âm.

- Hỗ trợ công nghệ full-color Starligh với độ nhạy sáng 0.005Lux/F1.6 cho hình ảnh có màu trong môi trường ánh sáng cực thấp.

- Hỗ trợ chức năng chống ngược sáng thực WDR 120dB, chống nhiễu (3DNR).

Đặc tính kỹ thuật

Camera
Image Sensor	1/2.8 inch 2.16 Mega Pixels CMOS
Effective Pixels	1920 (H)×1080 (V), 2MP
Electronic Shutter Speed	PAL:1/25s–1/100000s NTSC:1/30s–1/100000s
Minimum Illumination	0.005Lux/F1.6, 30IRE, 0Lux white Light on
Fill Light (White Light) Distance	Distance up to 40m (131.23ft)
Fill Light On/Off Control	Auto; Manual
Fill Light Number	2
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–180° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	3.6mm
Max. Aperture	F1.6
Angle of View	103.6°x86.9°x46.3° (diagonalxhorizontalxvertical)
Iris Type	Fixed iris
Close Focus Distance	1.2m (3.94ft)
DORI Distance	Detect: 55.2m (181.1ft) Observe: 22.1m (72.5ft) Recognize: 11.0m (36.0ft) Identify: 5.5m (18.0ft)
Video
Video Frame Rate	CVI: - PAL: 1080@25fps, 720@25fps, 720@50fps; - NTSC: 1080@30fps, 720@30fps, 720@60fps AHD: - PAL: 1080@25fps,720@25fps; - NTSC: 1080@30fps,720@30fps TVI: - PAL: 1080@25fps,720@25fps,720@50fps; - NTSC: 1080@30fps,720@30fps,720@60fps CVBS: - PAL: 960×576H; - NTSC: 960×480H
Resolution	1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480)
BLC	BLC/HLC/WDR
WDR	DWDR
White Balance	Auto; Manual
Gain Control	Auto; Manual
Noise Reduction	2D NR
Smart Light	Yes
Electronic Defog	Yes
Digital Zoom	16X
Mirror	Off/On
Privacy Masking	Off/On (4 area, rectangle)
Interface
Audio Interface	Built-in mic(-A)
Port
Video Port	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	12V ±30% DC
Power Consumption	Max 5W (12V DC, white light on)
Environment
Operating Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature	-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection Grade	IP67
Structure
Casing	Metal front cover+plastic main body+metal bracket
Dimensions	198.4mm×80.2mm×76.2mm (7.81'×3.16'×3.00')
Net Weight	0.3Kg(0.66lb)
Gross Weight	0.45Kg(0.99lb)
