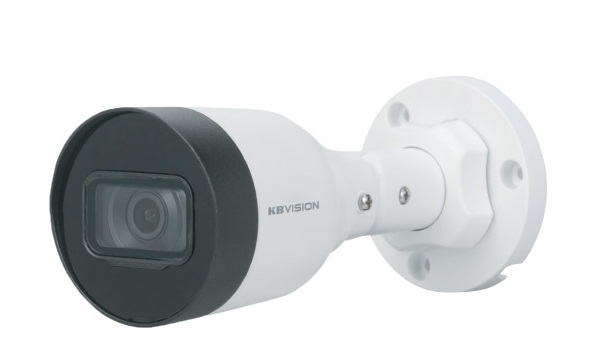

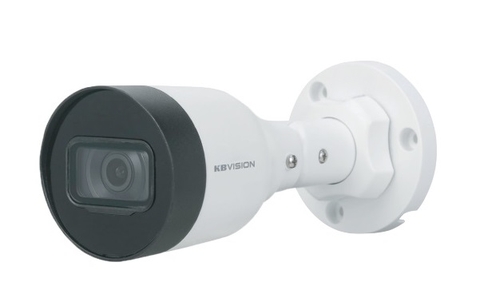

Camera IP hồng ngoại 2.0 Megapixel KBVISION KX-A2101N2-D

Thương hiệu: KBVISION Mã sản phẩm: KX-A2101N2-D

783.000₫

Chi tiết
Đánh giá

Camera IP hồng ngoại 2.0 Megapixel KBVISION KX-A2101N2-D

- Cảm biến hình ảnh: 1/2.8 inch Sony NIR 2.0 Mp, 25-30fps@ 2M(1920×1080).

- Chuẩn nén hình ảnh: Smart H.264+/H.265+.

- Ống kính: 3.6mm (góc nhìn 84°).

- Tầm camera quan sát hồng ngoại: 30 mét.

- Hỗ trợ chức năng chống ngược sáng DWDR.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 12VDC.

- Không hỗ trợ chức năng cấp nguồn qua mạng PoE.

Đặc tính kỹ thuật

Model	KX-A2101N2-D
Camera
Image Sensor	1/2.8 inch CMOS
Max. Resolution	1920 (H) × 1080 (V)
ROM	16 MB
RAM	64 MB
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Scanning System	Progressive
Min. Illumination	0.01 Lux@F2.0 (Color,30IRE) 0.001 Lux@F2.0 (B/W,30IRE) 0 lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	30 m (98.43 ft) (IR)
Illuminator On/Off Control	Auto; manual
Illuminator Number	3 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	2.8 mm: F2.0 3.6 mm: F2.0
Field of View	2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Close Focus Distance	2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft)
Iris Control	Fixed
Video
Compression	H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) (The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity)
Stream Capability	2 streams
Resolution	1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Alarm
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Ethernet	RJ-45 (10/100Base-T)
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability	ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
User/Host	6 (total bandwidth 36 MB)
Storage	FTP
Browser	IE Chrome Firefox
Management Software	KBiVMS, KBView , KBView Plus
Mobile Phone	IOS, Android
Power
Power Supply	12VDC
Power Consumption	Basic: 1.4W (12V DC) Max. (ICR + H.265+IR intensity): 3.3W (12V DC)
Environment
Operating Temperature	–40°C to +60°C (–40°F to +140°F)
Operating Humidity	≤ 95%RH
Storage Temperature	–40°C to +60°C (–40°F to +140°F)
Protection	IP67
Structure
Casing	Metal + plastic
Dimensions	162.6 mm × Φ70 mm
Weight	0.21 kg
