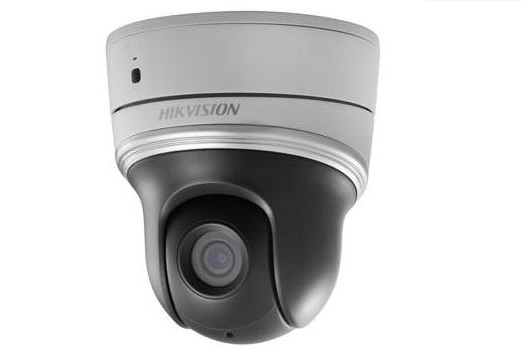

Camera IP Speed Dome hồng ngoại Wifi 2.0 Megapixel HIKVISION DS-2DE2204IW-DE3/W

Thương hiệu: HIKVISION Mã sản phẩm: DS-2DE2204IW-DE3/W

4.341.000₫

Chi tiết
Đánh giá

Camera IP Speed Dome hồng ngoại Wifi 2.0 Megapixel HIKVISION DS-2DE2204IW-DE3/W

- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.

- Độ phân giải camera ip: 1920x1080:30fps.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.

- Zoom quang: 4x.

- Zoom số: 16x.

- Tầm quan sát hồng ngoại: 20 mét.

- Góc nhìn Angle of View: 80 ~ 64.5° (Wide~Tele).

- Góc quay Pan range: 0°~350°.

- Góc quét Tilt range: 0°~90° (Auto Flip).

- Tốc độ Pan Speed: 0.1° -100°/s.

- Tốc độ quét Tilt Speed: 0.1° -80°/s.

- Hỗ trợ kết nối Wifi.

- Chức năng giảm nhiễu số 3D DNR.

- Chức năng quan sát ngày đêm ICR.

- Nguồn cấp: POE&12VDC.

Đặc tính kỹ thuật

Model	DS-2DE2204IW-DE3/W
Camera
Image Sensor	1/2.8 inch progressive scan CMOS
Effective Pixels	1920(H) x 1080(V)
Min. Illumination	Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.005 Lux @(F2.0, AGC ON) 0 Lux with IR
White Balance	Auto/ Manual/ ATW/ Indoor/ Outdoor/ Daylight lamp/ Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
WDR	DWDR
Day & Night	ICR
Privacy Masking	8 programmable privacy masks
Auto Focus	Auto / Semi-automatic / Manual
Digital Zoom	16x
IR Distance	20m
Lens
Focal Length	2.8 mm to 12 mm, 4× optical zoom
Field of View	100° to 25° (wide-tele)
Minimum Working Distance	10 mm to 1500 mm (Wide-Tele)
Aperture Range	F1.8 to F2.5
Pan and Tilt
Pan Range	Pan: 0~350°
Pan Speed	Configurable, from 0.1°/s to 60°/s, Preset Speed: 60°/s
Tilt Range	0°~90°
Tilt Speed	Configurable, from 0.1°/s to 50°/s, Preset Speed: 50°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan
PTZ Position Display	ON/OFF
Alarm
Alarm Input	1
Alarm Linkage	Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input	Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output	1 channel audio output, linear level
Network
Ethernet	10Base -T, 100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Audio Compression	G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/ PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20 channels
General
Power supply	12V DC & PoE((802.3af, class3)
Consumption	Max.: 9W
Material	ADC12 PC PC+ABS SUS304 POM
Dimensions	Φ 125 mm × 136.7 mm
Weight	0.65kg
