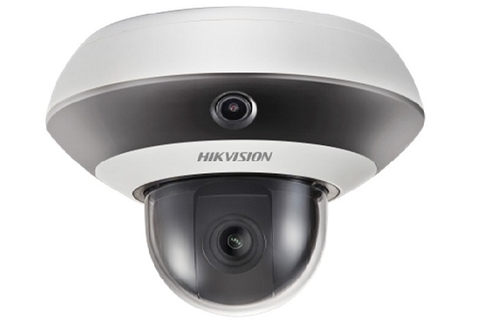

Camera IP toàn cảnh kết hợp Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2PT3326IZ-DE3

Thương hiệu: HIKVISION Mã sản phẩm: DS-2PT3326IZ-DE3

8.553.000₫

Chi tiết
Đánh giá

Camera IP toàn cảnh kết hợp Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2PT3326IZ-DE3

Panoramic Camera

- Cảm biến hình ảnh: 3 camera 1/2.8 inch progressive scan CMOS.

- Độ phân giải: 3-ch 1920 × 1080@30fps.

- Độ nhạy sáng: Color: 0.05 Lux @(F2.0, AGC ON); B/W: 0.01 Lux @(F2.0, AGC ON); 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265.

- Góc quan sát ngang: 128.5°× 3.

PTZ Camera

- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.

- Độ phân giải: 1920 × 1080@30fps.

- Độ nhạy sáng: Color: 0.05 Lux @(F2.0, AGC ON); B/W: 0.01 Lux @(F2.0, AGC ON); 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265.

Đặc tính kỹ thuật

Model	DS-2PT3326IZ-DE3
Panoramic Camera
Image Sensor	Three 1/2.8 inch progressive scan CMOS
Min. Illumination	Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
Shutter Time	50 Hz: 1/1s to 1/30,000s 60 Hz: 1/1s to 1/30,000s
Day & Night	IR Cut Filter
Gain	Auto/Manual
WDR	Digital WDR
Smart Image Enhancement	HLC/BLC/3D DNR/Defog/Regional Exposure
White Balance	Auto/ Manual/ ATW (Auto-Tracking White Balance)/ Indoor/ Outdoor/ Fluorescent/ Lamp/ Sodium Lamp
Privacy Mask	4 x 3 programmable privacy masks
Focal Length	2mm
Aperture Range	F2.0
FOV	Horizontal field of view: 128.5° x 3 Vertical field of view: 75.7° Diagonal field of view: 144°
PTZ Camera
Image Sensor	1/2.8 inch progressive scan CMOS
Min. Illumination	Color: 0.05 Lux @ (F2.0, AGC ON) B/W: 0.01 Lux @ (F2.0, AGC ON) 0 Lux with IR
Shutter Time	50 Hz: 1/1s to 1/30,000s 60 Hz: 1/1s to 1/30,000s
Day & Night	IR Cut Filter
Gain	Auto/Manual
WDR	Digital WDR
Smart Image Enhancement	HLC/BLC/3D DNR/Defog/Regional Exposure/Regional Focus
White Balance	Auto/ Manual/ ATW (Auto-Tracking White Balance)/ Indoor/ Outdoor/ Fluorescent/ Lamp/ Sodium Lamp
Privacy Mask	8 programmable privacy masks
Digital Zoom	8x
Focus Mode	Semi-automatic/Manual
Focal Length	2.8 mm to 12 mm, 4x optical zoom
Aperture Range	F2.0 to F2.4
Pan and Tilt Range	Pan: 0°to 350°; Tilt: 0°to 90°
Pan and Tilt Speed	Pan: 0.1°/s ~ 30°/s (configurable), preset speed: 30°/s Tilt: 0.1°/s ~ 30°/s (configurable), preset speed: 30°/s
System
IR	Up to 10 m
Video Compression	Main stream: H.265/H.264/MJPEG H.264: Main Profile/High Profile
Simultaneous Live View	Up to 4 × 4 channels
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Power	12 VDC (Max.24 W), PoE+ (Max. 25 W), IR Max. 6 W
Material	PC + ABS & Aluminum alloy
Dimensions	Φ 183 mm × 133.2 mm
Weight	0.9kg
