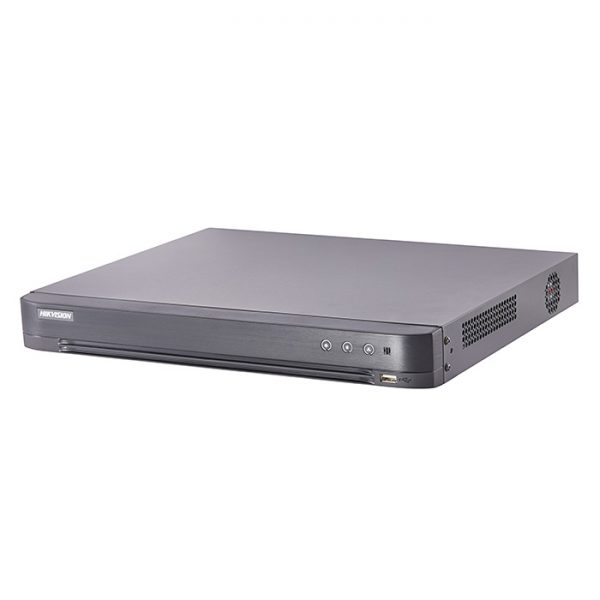

Đầu ghi 16 kênh Turbo HD 3.0 HIKVISION DS-7216HGHI-K1(S)

Thương hiệu: HIKVISION Mã sản phẩm: DS-7216HGHI-K1(S)

1.990.000₫

Đầu ghi hình 5 in 1 16 kênh HIKVISION DS-7216HGHI-K1(S)

- Support H.265 Pro+/H.265 Pro/H.265 video compression

- Support HDTVI/AHD/CVI/CVBS/IP video input

- Support 2-ch (up to 18-ch) camera IP input, up to 5 MP

- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

Đặc tính kỹ thuật

Model	DS-7216HGHI-K1(S)
Video/Audio Input
Audio Input	1-ch
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input	BNC interface (1.0Vp-p, 75 Ω) connection
Supported camera types	Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input
IP Video Input	2-ch (up to 18-ch);Up to 5 MP resolution; Support H.265+/ H.265/ H.264+/ H.264 IP
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	1080p/720p/VGA/WD1/4CIF/CIF
Audio Output	1-ch RCA (Linear, 1kΩ)
Synchronous Playback	16-ch
Network management
Remote connections	64
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up to 10 TB capacity for each disk
External Interface
Network Interface	1 RJ45 10M/100M adaptive Ethernet Interface
USB	2 USB 2.0
Serial	1; standard RS-485 serial interface, half-duplex
General
Power Supply	12 VDC
Working Temperature	-10ºC to +55ºC
Working Humidity	10% to 90%
Dimensions	260 × 222 × 45 mm
Weight	≤ 1.1 kg
