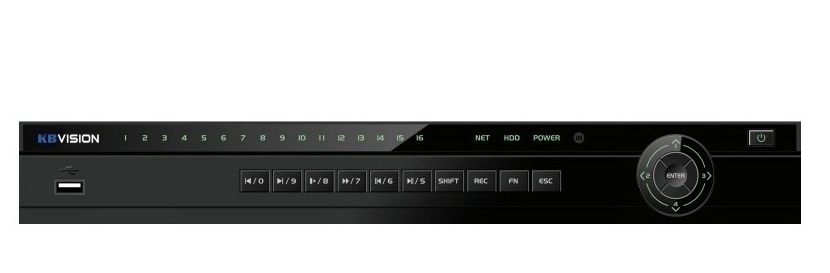

Đầu ghi hình 32 kênh 5 in 1 KBVISION KX-D8232-D

Thương hiệu: KBVISION Mã sản phẩm: KX-D8232-D

8.451.000₫ Giá niêm yết: ~~18.780.000₫~~ Tiết kiệm: 10.329.000₫ so với giá thị trường

Chi tiết
Đánh giá

Đầu ghi hình 32 kênh 5 in 1 KBVISION KX-D8232-D

- Đầu ghi hình 5 in 1 32 kênh hỗ trợ HDCVI/AHD/TVI/CVBS/IP tối đa 5MP (CVI).

- Hỗ trợ ghi hình: 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 720P/960H/D1/CIF (1fps–25/30fps).

- Chuẩn nén hình ảnh: H.264+/H.264/MJPEG.

- Hỗ trợ camera IP tối đa 32 kênh, lên đến 4MP (chuyển kênh Analog sang IP).

- Băng thông tối đa 128 Mbps.

- Hỗ trợ 1 kênh bảo vệ chu vi (IVS).

- Hỗ trợ 1 kênh Face Detection (chỉ hỗ trợ camera analog, kênh 1).

- Chế độ xem lại: 1/4/9/16 kênh cùng lúc.

- Hỗ trợ cổng Audio in/out đàm thoại 2 chiều hoặc ghi âm cho kênh 1.

- Tương thích với tín hiệu ngõ ra: 1 HDMI, 1 VGA.

- Cổng mạng: 1 RJ-45 Port (1000 Mbps).

- Hỗ trợ 2 cổng SATA dung lượng 10TB mỗi ổ cứng.

- Hỗ trợ 128 người sử dụng truy cập cùng lúc, thích hợp cho những dự án như trường học, trường mầm non.

- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek.

Đặc tính kỹ thuật

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Face Detection
Face Detection	only for the 1st channel,only support analog camera
IVS Analytics
IVS	1 channel, 10 IVS for each channel,only support analog camera
Video and Audio
Analog Camera Input	32 Channel, BNC
HDCVI Camera	5 MP; 4 MP; 3 MP; 1080p; 720p
AHD Camera	5 MP; 4 MP; 3 MP; 1080p; 720p
TVI Camera	5 MP; 4 MP; 3 MP; 1080p; 720p
CVBS Camera	PAL/NTSC
IP Camera Input	32 Channel, each channel up to 4MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	H.264+/H.264
Resolution	5 MP, 4 MP, 3 MP, 1080P, 720P,960H, D1, CIF, BCIF, QCIF
Record Rate	Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 720p/960H/D1/CIF (1 fps–25/30 fps); Sub steram: 960H (1 fps–15 fps);1/CIF (1 fps–25/30 fps)
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Sample Rate	8 KHz, 16 bit Per Channel
Audio Bit Rate	64 Kbps Per Channel
Display
Ports	1 HDMI, 1 VGA, 1 TV
Video Output	HDMI: 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display	1/4/8/9/16/25/36
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	1 RJ-45 Port (1000M)
Network Protocol	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, SNMP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF (profile S), CGI, SDK
Alarm
General Alarm	Motion detection, Video Loss, tampering
Anomaly Alarm	No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm	Face detection, IVS
Alarm Linkage	Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Playback and Backup
Playback	1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode	USB Device/Network
Storage
HDD Interface	2 SATA ports, up to 10 TB capacity for each disk
Auxiliary Interface
USB	1 USB 2.0 , 1 USB 3.0
RS485	1 Port, for PTZ Control
Electrical
Power Supply	DC12V/5A
Power Consumption	≤27W (Without HDD)
Construction
Dimensions	1U, 375mm×287mm×53mm (14.8' x 11.3' x 2.1')
Net Weight	≤ 1.9 kg (4.2 lb) (without HDD)
Installation	Desktop installation
Environmental
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Operating Humidity	10%–90%
Third-party Support
Third-party Support	Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
