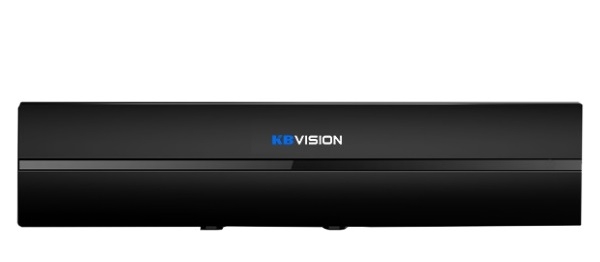

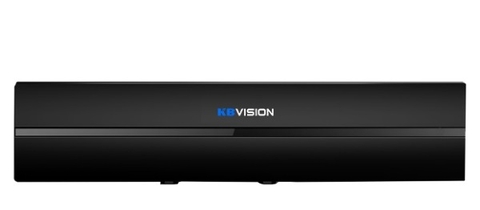

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-7108Ai

Thương hiệu: KBVISION Mã sản phẩm: KX-7108Ai

1.660.000₫

Chi tiết
Đánh giá

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-7108Ai

- Đầu ghi hình Mini HD 5 in 1 (CVI/ TVI/ AHD/ Analog/ IP) 8 kênh + 2 kênh IP.

- Khoảng cách kết nối từ camera lên đến 1200m (đối với camera 1.0MP và 1.3MP khi sử dụng cáp 75-5), 800m (đối với camera 2.0MP khi sử dụng cáp 75-5).

- Chuẩn nén hình ảnh: AI-Coding/H.265+/H.265.

- Ghi hình ở độ phân giải: 1080N, 720P (kênh 1 25/30fps, các kênh còn lại 15fps).

- Tương thích với tín hiệu ngõ ra: VGA/HDMI.

- Hỗ trợ chức năng SMD Plus giúp hạn chế báo động giả.

- Hỗ trợ 1 cổng SATA dung lượng 6TB, 2 USB 2.0.

- Chế độ xem lại: 1/4/9 kênh đồng thời.

- Hỗ trợ cổng Audio: 1 in/ 1 out, hỗ trợ âm thanh 2 chiều.

- Hỗ trợ tên miền miễn phí KBVISION.TV trọn đời sản phẩm.

Đặc tính kỹ thuật

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
SMD Plus
Performance	4 channels
AI Search	Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input	8 Channel, BNC
HDCVI Camera	1080P@25/30fps, 720P@50/60fps, 720P@25/30fps>
AHD Camera	1080P@25/30, 720P@25/30fps>
TVI Camera	1080P@25/30, 720P@25/30fps>
CVBS Camera	PAL/NTSC
IP Camera Input	8+2 Channel, each channel up to 6MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	1080N; 720p; 960H; D1; CIF
Record Rate	Main Stream: 8-channel: the 1st channel 1080N/720p (1 fps–25/30fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub stream: 8-channel: CIF (1 fps–7 fps)
Bit Rate	32Kbps ~ 4096Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression	G.711A, G.711U, PCM
Audio Sample Rate	8KHz, 16 bit Per Channel
Audio Bit Rate	64Kbps Per Channel
Display
Interface	1 HDMI ,1 VGA
Resolution	1920×1080, 1280×1024, 1280×720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	1 RJ-45 Port (100M)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports KBVISION IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback and Backup
Playback	01/04/2009
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA Port, up to 6TB capacity
Auxiliary Interface
USB	2 USB 2.0
Electrical
Power Supply	DC12V/1.5A
Power Consumption (without HDD)	<7W
Construction
Dimensions	Cooper 1U, 198 mm × 203.4 mm × 41.5 mm
Net Weight (without HDD)	0.57 kg (1.25 lb)
Gross Weight	1.12 kg (2.45 lb)
Installation	Desktop installation
Environmental
Operating Conditions	-10°C ~ +45°C (+14°F ~ +113°F), 0~ 90% RH
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
