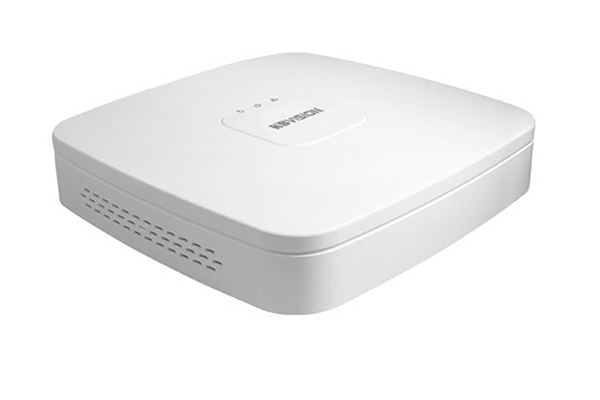

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-CAi7108TH1

Thương hiệu: KBVISION Mã sản phẩm: KX-CAi7108TH1

2.150.000₫

Chi tiết
Đánh giá

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-CAi7108TH1

- Đầu ghi hình AI 5 in 1 SMD 8 kênh vỏ nhựa.

- Hỗ trợ HDCVI/ AHD/ TVI/ CVBS/ IP.

- Ghi hình:

o Kênh số 1: 1080N/720p(1–25/30fps)

o Các kênh còn lại: 1080N/720p(1 fps–15fps); 960H/D1/CIF/(1–25/30fps)

- Chuẩn nén hình ảnh: AI Coding/H.265+/H.265/H.264+/H.264.

- Hỗ trợ camera IP tối đa 10 kênh, lên đến 6MP.

- Băng thông tối đa 32 Mbps.

- Hỗ trợ 8 kênh SMD Plus.

- Chế độ xem lại: 1/4/9 kênh cùng lúc.

- Hỗ trợ tìm kiếm và phân loại theo mục tiêu (Người, Phương tiện).

- Hỗ trợ cổng Audio in/out đàm thoại 2 chiều hoặc ghi âm cho kênh 1.

- Hỗ trợ 1 HDMI, 1 VGA, 1 RJ-45 Port (100 Mbps).

- Hỗ trợ 1 cổng SATA dung lượng 6TB.

- Nguồn điện: 12VDC, 1.5A.

- Hỗ trợ 128 người sử dụng truy cập cùng lúc thích hợp cho những dự án như trường học, trường mầm non...

- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...

Đặc tính kỹ thuật

System
Main Processor	Embedded processor
Operating System	Embedded linux
SMD Plus
Performance	8 channels
AI Search	Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input	8 channels, BNC
HDCVI Camera Input	1080p@ 25/30 fps, 720p@ 25/30 fps
AHD Camera Input	1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input	1080p@25/30 fps, 720p@25/30 fps
CVBS Camera Input	PAL/NTSC
IP Camera Input	8+2 channels, each channel up to 6MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	1080N; 720p; 960H; D1; HD1; BCIF; CIF
Record Rate	Main Stream: 8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 8-channel: CIF (1fps–7 fps)
Bit Rate	32 kbps–6144 kbps per channel
Record Mode	Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval	1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression	G.711A; G.711U; PCM
Audio Sample Rate	8 KHz, 16 bit per channel
Audio Bit Rate	64 kbps per channel
Display
Interface	1 HDMI; 1 VGA
Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
OSD	Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Network
Interface	1 RJ-45 Port (100 Mbps)
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone; iPad; Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback and Backup
Playback	1/4/9
Search Mode	Time/Date; Alarm; MD and Exact Search (accurate to second)
Playback Function	Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA port, up to 6 TB capacity
Auxiliary Interface
USB	2 USB ports (USB 2.0)
Electrical
Power Supply	DC 12V/1.5A
Power Consumption (Without HDD)	< 7W
Construction
Dimensions	Smart 1U, 204.6 mm × 210.9 mm × 45.6 mm
Net Weight (without HDD)	0.50 kg (1.10 lb)
Gross Weight	1.07 kg (2.36 lb)
Installation	Desktop installation
Environmental
Operating Conditions	-10°C to +45°C (+14°F to +113°F), 0%–90% (RH)
Storage Conditions	-20°C to +70°C (-4°F to +158°F) , 0%–90% (RH)
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
