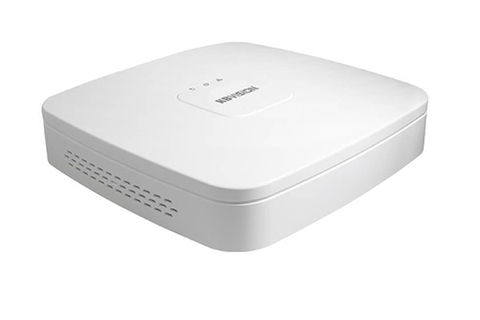

Đầu ghi hình AI 5 in 1 4 kênh KBVISION KX-CAi7104TH1

Thương hiệu: KBVISION Mã sản phẩm: KX-CAi7104TH1

1.575.000₫

Chi tiết
Đánh giá

Đầu ghi hình AI 5 in 1 4 kênh KBVISION KX-CAi7104TH1

- Đầu ghi hình AI 5 in 1 SMD 4 kênh vỏ nhựa.

- Hỗ trợ HDCVI/AHD/TVI/CVBS/IP.

- Ghi hình: 1080N/720p/960H/D1/CIF(25/30 fps).

- Chuẩn nén hình ảnh: AI Coding/H.265+/H.265/H.264+/H.264.

- Hỗ trợ camera IP tối đa 5 kênh, lên đến 2.0 Megapixel.

- Băng thông tối đa 32 Mbps.

- Hỗ trợ 4 kênh SMD Plus. Playback 1/4 kênh cùng lúc.

- Hỗ trợ tìm kiếm và phân loại theo mục tiêu (Người, Phương tiện)

- Hỗ trợ cổng Audio in/out đàm thoại 2 chiều hoặc ghi âm cho kênh 1.

- Hỗ trợ 1 HDMI, 1 VGA, 1 RJ-45 Port (100 Mbps)

- Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 6TB.

- Nguồn điện: 12VDC, 1.5A.

- Hỗ trợ 128 user truy cập cùng lúc thích hợp cho những dự án như trường học, trường mầm non...

- Hỗ trợ kết nối với camera cũa các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...

Đặc tính kỹ thuật

Model	KX-CAi7104TH1
System
Main Processor	Embedded processor
Operating System	Embedded linux
SMD Plus
Performance	4 channels
AI Search	Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input	4 channels, BNC
HDCVI Camera Input	1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps
AHD Camera Input	1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input	1080p@25/30 fps, 720p@25/30 fps
CVBS Camera Input	PAL/NTSC
IP Camera Input	4+1 channels, each channel up to 2MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	1080N; 720p; 960H; D1; CIF
Record Rate	Main Stream: 4-channel: All channels 1080N/720p/960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 4-channel: CIF/(1 fps–15 fps)
Bit Rate	32 kbps–6144 kbps per channel
Record Mode	Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval	1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression	G.711A; G.711U; PCM
Audio Sample Rate	8 KHz, 16 bit per channel
Audio Bit Rate	64 kbps per channel
Display
Interface	1 HDMI; 1 VGA
Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
OSD	Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Network
Interface	1 RJ-45 Port (100 Mbps)
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports KBVISION IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone; iPad; Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback and Backup
Playback	1/4
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA port, up to 6 TB capacity
Auxiliary Interface
USB	2 USB ports (USB 2.0)
Power Supply	DC 12V/1.5A
Power Consumption (Without HDD)	< 4W
Construction
Dimensions	Smart 1U, 204.6 mm × 210.9 mm × 45.6 mm
Weight	0.47 kg
