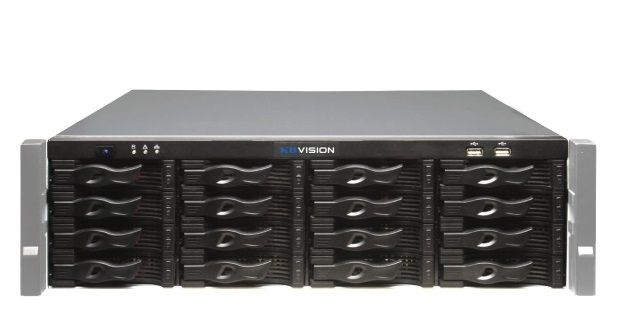

Đầu ghi hình camera IP 128 kênh KBVISION KX-E4K816128N2

Thương hiệu: KBVISION Mã sản phẩm: KX-E4K816128N2

61.650.000₫ Giá niêm yết: ~~137.000.000₫~~ Tiết kiệm: 75.350.000₫ so với giá thị trường

Chi tiết
Đánh giá

- Đầu ghi hình NVR 128 kênh.

- Hỗ trợ 128 kênh IP ngõ vào độ phân giải lên đến 12 Megapixel, băng thông tối đa 384Mbps.

- Tương thích với tín hiệu ngõ ra: 1 VGA + 2 HDMI 4K (3840x2160).

- Đa hiển thị: Màn hình 1: 1/4/8/9/16/25/36, Màn hình 2: 1/4/8/9/16.

- Chế độ xem lại: 64Mbps chế độ thường hoặc 128 Mbps ở RAID 5.

- Hỗ trợ: chuẩn Onvif 2.4, Cloud, QR Code, RJ45, âm thanh hai chiều.

- Hỗ trợ 16 ổ cứng SATA dung lượng lên đến 128TB.

- Hỗ trợ 1 eSATA, 2 USB 2.0, 2 USB 3.0.

- Hỗ trợ RAID 0/1/5/6/10/50/60, N+M hot stanby, iSCSI cho phép mở rộng không gian lưu trữ.

- Hỗ trợ 128 người sử dụng truy cập cùng lúc.

Đặc tính kỹ thuật

Model	KX-E4K816128N2
System
Main Processor	Intel Quad-core Processor
Operating System	Embedded LINUX
Video and Audio
IP Camera Input	128 Channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Recording
Compression	H.265/H.264/MJPEG
Resolution	12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Record Rate	384Mbps
Record Mode	Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface	2 HDMI 4K (3840 x 2160), 1 VGA
Resolution	3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display	1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
OSD	Camera title, Time, Camera lock, Motion detection, Recording
Network
Interface	4 RJ-45 Ports (10/100/1000Mbps)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.),
Optical Fiber Interface	2 Giga Optical Fiber Interface
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input	16 Channel, Low Level Effective, Green Terminal Interface
Relay Output	8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event	Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc
Playback and Backup
Playback	128 Mbpsin Raid 5 Mode; 64 Mbpsin single HDD Mode
Search Mode	Time/Date, MD and Exact Search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	16 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode	Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA	1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS	1 Mini SAS Port, for Storage Expansion
Auxiliary Interface
Front Cover	Support Hot-swap
USB	4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS232	1 Port, for PC Communication and Keyboard
RS485	1 Port, for PTZ Control
General
Power Supply	AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
Dimensions	3U, 485mm x 512.9mm x 133.2mm
Weight	17.6kg
