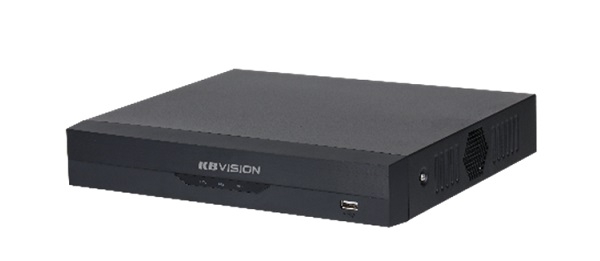

Đầu ghi hình camera IP 4 kênh KBVISION KX-CAi4K8104N2

Thương hiệu: KBVISION Mã sản phẩm: KX-CAi4K8104N2

2.601.000₫ Giá niêm yết: ~~5.780.000₫~~ Tiết kiệm: 3.179.000₫ so với giá thị trường

Chi tiết
Đánh giá

Đầu ghi hình camera IP 4 kênh KBVISION KX-CAi4K8104N2

- Đầu ghi hình NVR AI nhận diện khuôn mặt.

- Hỗ trợ camera IP độ phân giải tối đa 8MP.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.

- Tương thích với tín hiệu ngõ ra: 1 HDMI/ 1 VGA, độ phân giải max 4K.

- Chế độ xem lại: 4 kênh cùng lúc.

- Hỗ trợ 1 cổng vào và 1 cổng ra Audio.

- Hỗ trợ 1 ổ cứng SATA với dung lượng lên đến 8TB.

- Băng thông tối đa: 80Mbps.

- Nguồn điện: 12VDC.

- Chất liệu: Thiết kế kim loại.

Đặc tính kỹ thuật

Model	KX-CAi4K8104N2
System
Main Processor	Industrial-grade embedded processor
Operating System	Embedded Linux
Operation Interface	Web/operating in local GUI
Video
Access Channel	4 channels
Network Bandwidth	80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
Resolution	12M/8M/5M/4M/3M/2M/720P/D1
Decoding Capability	1ch 8MP@30fps 4ch 1080P@30fps
Video Output	1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K
Multi-screen Display	1/4
Third Party Camera Access	Onvif, RTSP
Compression
Video	H.264/.H265/Smart H.264+/Smart H.265+/MJPEG
Audio	PCM/G711A/G711U/G26/AAC
Network
Network Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
Mobile Phone Access	Android, iOS
Interoperability	ONVIF (profile T/profile S/profile G), CGI, SDK
Browser	Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback	Up to 4 channels playback
Record Mode	Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage	Local HDD and network
Backup	USB device
Playback Function	1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
SMD Plus
Performance	4 channels
AI Search	Search by target classification (Human, Vehicle)
Face Recognition
Performance	Max 8 face pictures/sec processing 1 channel video stream face recognition
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application	Each database can be applied to video channels independently.
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc
Alarm Linkage	Video recording, snapshot, log, preset, tour
Perimeter Protection
Performance	2 channels
Object classification	Human/Vehicle secondary recognition for tripwire and intrusion
AI Search	Search by target classification (Human, Vehicle)
Alarm
General Alarm	Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm	Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage	Video recording, snapshot, log, preset, tour
External Port
HDD	1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature
USB	1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI	1
VGA	1
Network	1 RJ–45 port (10/100 Mbps)
RCA Input	1
RCA Output	1
General Parameter
Power Supply	DC12V, 1.5A
Power Consumption	Total output of NVR is ≤ 10W (without HDD)
Net Weight	0.81 kg (1.79 lb)
Gross weight	1.38 kg (3.04 lb)
Product Dimensions	260 mm × 232.7 mm × 47.6 mm (W × L × H) 10.24 inch × 9.16 inch × 1.87 inch (W × L × H)
Package Dimensions	89 mm × 333 mm × 315 mm (W × L × H) 3.50 inch × 13.11 inch × 12.40 inch (W × L × H)
Operating Temperature	-10°C to 55°C (+14°F to +113°F)
Storage Temperature	0°C to 40°C (+32°F to +104°F)
Operating Humidity	10%–93%
Storage Humidity	30%–85%
Operating Altitude	3000 m (9843 ft)
Installation	Desktop mounting
