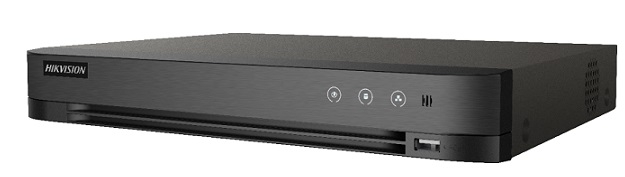

Đầu ghi hình Hybrid TVI-IP 8 kênh TURBO 4.0 HIKVISION DS-7208HUHI-K1/E(S)

Thương hiệu: HIKVISION Mã sản phẩm: DS-7208HUHI-K1/E(S)

3.966.000₫

Chi tiết
Đánh giá

Đầu ghi hình Hybrid TVI-IP 8 kênh TURBO 4.0 HIKVISION DS-7208HUHI-K1/E(S)

- Đầu ghi 8 Megapixel lite 8 kênh.

- Chuẩn nén hình ảnh: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

- Hỗ trợ kết nối camera HDTVI/AHD/CVI/CVBS/IP.

- Hỗ trợ add 16 camera IP.

- Hỗ trợ 1 ổ cứng SATA với dung lượng lên đến 6TB.

- Hỗ trợ 2 cổng USB 2.0.

Đặc tính kỹ thuật

Model	DS-7208HUHI-K1/E(S)
Recording
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate	Mainstream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps to 10 Mbps
Dual stream	Support
Stream type	Video, Video & Audio
Audio compression	G.711u
Audio bit rate	64 Kbps
Video and Audio
IP video input	8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input	8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input	5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input	4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input	PAL/NTSC
HDMI/VGA output	HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA: 1-ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280x720/60Hz, 1024 ×768/60Hz
Audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output	1-ch, RCA (Linear, 1 KΩ)
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback	8-ch
Network
Incoming bandwidth	64Mbps
Remote connections	64
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Network interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA	1 SATA interface
Capacity	Up to 6 TB capacity for each disk
USB interface	2 × USB 2.0
General
Power supply	12 VDC
Consumption (without HDD)	≤ 15 W
Working temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity	10% to 90%
Dimensions (W × D × H)	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD)	≤ 2 kg (4.4 lb)
