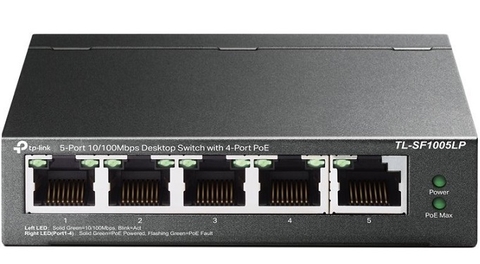

Switch TP-LINK TL-SF1005LP 5-Port 10/100Mbps with 4-port PoE

Thương hiệu: TP-LINK Mã sản phẩm: TL-SF1005LP

490.000₫

Switch TP-LINK TL-SF1005LP 5-Port 10/100Mbps with 4-port PoE

- 5× 10/100 Mbps RJ45 ports.

- 4× PoE ports transfer data and power on individual cables.

- Works with IEEE 802.3af compliant PDs.

- Up to 250m data and power transmitting range under Extend Mode.

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.

- Supports PoE Power up to 41W for all PoE ports.

- Plug and play with no configuration required.

Specifications

Hardware
Interface	5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate	0.744 Mpps
PoE Ports (RJ45)	Standard: 802.3 af compliant PoE Ports: Ports 1–4 Power Supply: 41 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1 Gbps
Dimensions (W x D x H)	100 x 98 x 25 mm
Max Power Consumption	1.9 W (220 V / 50 Hz, no PD connected) 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation	6.48 BTU/h (no PD connected) 160.27 BTU/h (with 41 W PD connected)
Software
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Others
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
